Thunder 1-A restoration

Well I finally got around to starting the restoration job. I bought this from someone who started a restore job but never quite got into into. She looked rough but solid and a fair few missing parts. There is beautiful grain in it so I wanted to highlight and darken this. I've never done a restoration of a guitar before although I do restore other things. This might get picture heavy as I can't resist! Here's what she was like when I got her, and a few after she began to come back to life. I was a bit concerned with the fret wear so I tackled this first. I made my own levelling bar from a uni strut and some 600 grit wet and dry. I had to take quite a bit off to get out the divots but had nothing to lose! It went pretty good. Any tips or comments along the way are appreciated and respected. Cheers

Hmm, photos didn't upload?

Shumer wrote:Hmm, photos didn't upload?

Have a look at THIS POST for some help.

You need a minimum of ten forum posts iirc,

That would be a 10 day wait.

Nice!

what colours are you thinking? also what finish?

Right, I can now post photos!!So here she is in the conditon I got her in.  Since then I have sanded both body and neck down to 320 grit and got her baby smooth.  I wanted the grain to really stand out softer much deliberation I decided to dye the wings in colron medium oak (wish i'd been bolder and gone blue!). I wanted to fill the grain but couldn't find any grain filler so i made my own. I was in the man shed and found my orbital sander tray was full of really fine oak sawdust so i made a paste with the sawdust and some clear varnish and some dye. It was a nice consistency and went on well.  First tip here, dont be too eager to sand it off!!! I made this mistake and dragged it all back out of the grain.







Going a bit nuts with the pre photos here! she was a bit rough when i got her but solid.  I was worried about that fret wear though! look at the grooves worn in them.  they were one of the first things i wanted to sort out as i thought a refret was in order. so with nothing to lose, i decided to tackle them and give them a full level and crown. I had used a steel strut bar that i had and stuck 400 grit wet&dry to it.  I masked up the board and got the sharpie out,


and here she is after the first few passes of the new homemade file.  no going back!

Excellent, plenty to do but it'll fly by!
don't worry about the amount of pics, keep em coming

That'll buff right out!! :-) You've just put the pickups bridge and neck back on for these photos, eh?!

Looking forward to seeing how this turns out!

corsair wrote:That'll buff right out!! :-) You've just put the pickups bridge and neck back on for these photos, eh?!

Looking forward to seeing how this turns out!

All those pics are how I got the guitar. Someone had mostly sanded it back and all the missing bits you don't see, never came with with it. I have the frets levelled, crowned and polished. Pics on the way shortly. Came out good.

Right gents, out of all the missing parts I need, I want to get the brass nut made. I have found someone locally who will make one for €30. Is this a good price? I've seen his work and he does fine work and even scallops the nuts if you want ( I don't want) unless anyone has Someone in mind, or someone has a spare nut ( like you do!) I will get him to make one. I will need all the specs though, are they listed on this site somewhere, I can't find it through searching. I will need the specs below if someone is kind enough to measure their nuts ( and I don't ask many men that!!

The thickness of the nut from front to back

The height of the nut

The height of the string groove from the bottom of the nut to the bottom of the string groove. (both front and back measurements)


String spacing


Fretboard radius

Thanks in advance

you might have a look at ebay, there are loads of part sellers.
a brass nut is easy to find, likely for less than 30 euros too.
here in the US, i can find one for 10 bucks.

don't know if it is the size you need, but just for example check here

43 x 6.5(front to back) x 6 (height)
35mm string spacing E to E
the string grooves entirely depend on the height of your frets in relation to the nut channel.
Iirc its a standard LP size nut, but the rest will have to be tweaked in relation to your guitar.

gittarasaurus wrote:you might have a look at ebay, there are loads of part sellers.
a brass nut is easy to find, likely for less than 30 euros too.
here in the US, i can find one for 10 bucks.

don't know if it is the size you need, but just for example check here

Thanks for the info.  I may have to adapt my thinking

Sgt. Vimes wrote:43 x 6.5(front to back) x 6 (height)
35mm string spacing E to E
the string grooves entirely depend on the height of your frets in relation to the nut channel.
Iirc its a standard LP size nut, but the rest will have to be tweaked in relation to your guitar.

Thanks for the detail. Having never had to replace a nut before i never thought of the finer points.  Knowing now that it is a standard les paul size, it might be better to buy a slotted les paul nut and then adjust to size my self.  Can i file out the bottom to adjust the slot height as i don't have slot files.  I can file the bottom dead square though.  You're really quick with the replies guys

Yes, yes you can

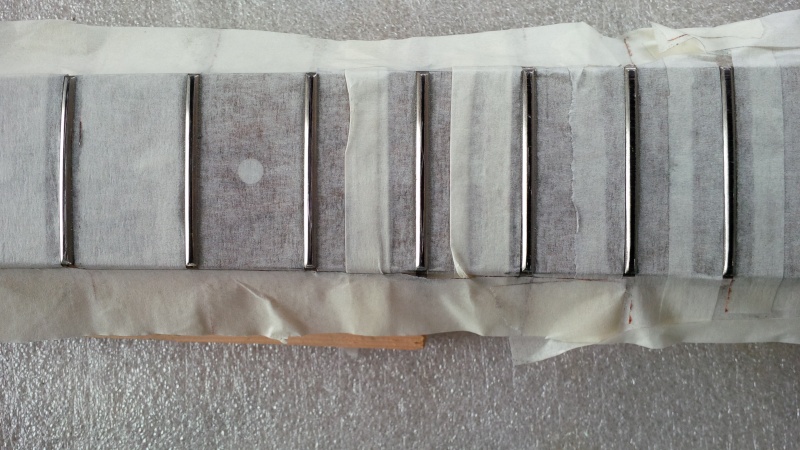

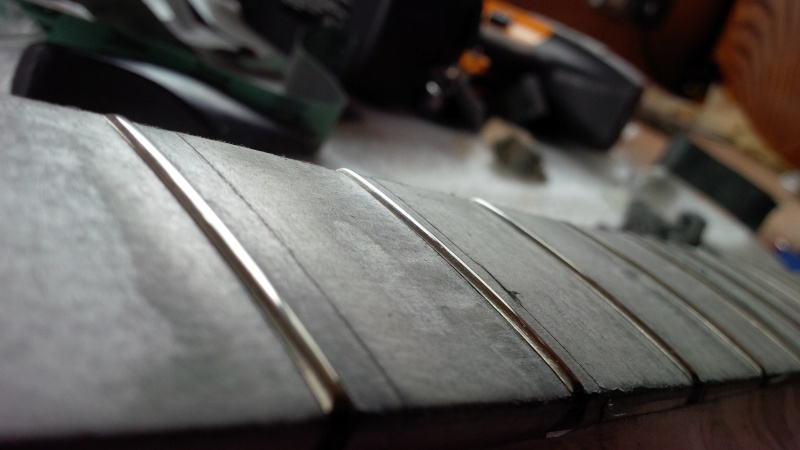

The frets polished up good. They are super smooth and nicely shaped.  This came out pretty good for a first time.  I used mineral oil to revive the dry fret board and after letting it soak in and buffed off it looks good. It's a satisfying job to complete

Sgt. Vimes wrote:Yes, yes you can

Brilliant, thanks.  I'd kinda prefer to do it myself.  It's becoming personal this resto!

Very nice indeed!
Did you use a crowning file or a regular flat file?

Shumer wrote:

corsair wrote:That'll buff right out!! :-) You've just put the pickups bridge and neck back on for these photos, eh?!

Looking forward to seeing how this turns out!

All those pics are how I got the guitar. Someone had mostly sanded it back and all the missing bits you don't see, never came with with it. I have the frets levelled, crowned and polished. Pics on the way shortly. Came out good.

Ahh; righto!! Gee, those frets look good and yeah; isn't it satisfying to do this stuff yourself?? ;-)

You know, the re-finish of this could be ultra-personal, like Sgt. Vimes green one - which I like lots - so before committing to a standard clear finish, consider a custom finish.... I've had a ball custom finishing one or two here, eh!! Got one bubbling under presently....

That's for sure John,  I'll bond with a guitar much more if I've had a ruddy good muck about with it.

Shumer do I see a hint of new headstock finish there?

Sgt. Vimes wrote:That's for sure John,  I'll bond with a guitar much more if I've had a ruddy good muck about with it.

Shumer do I see a hint of new headstock finish there?

Great attention to detail there! Yes the headstock has been dyed in oak and had grainfiller and then I've applied some wipe on poly I made by mixing 50/50 clear gloss varnish and white spirit. It was a test bed for the body. I love the natural look when the grain is good and all my other guitars are coloured so I went straight in. Wish it was green though. Or blue. I was keen to start. The back of the neck has had some loving too. Clear wipe on. I was doing 3 thin coats then wet and dry 400 with soapy water. I've now moved on to 600 grit. A lot of time went into that neck so far. And it was a crowning file I got from Chris Alsop custom guitars. Brilliant tool, easy to use and half the price of every other one I've seen. Delivered in 2 days too

corsair wrote:

Shumer wrote:
All those pics are how I got the guitar. Someone had mostly sanded it back and all the missing bits you don't see, never came with with it. I have the frets levelled, crowned and polished. Pics on the way shortly. Came out good.

Ahh; righto!! Gee, those frets look good and yeah; isn't it satisfying to do this stuff yourself?? ;-)

You know, the re-finish of this could be ultra-personal, like Sgt. Vimes green one - which I like lots - so before committing to a standard clear finish, consider a custom finish.... I've had a ball custom finishing one or two here, eh!! Got one bubbling under presently....

I wanted it natural as I have plenty of coloured guitars around and the grain is so nice. It's the safe (boring) choice but as a first restoration I didn't want to have regrets ( which ironically I Do anyway now!!)I'm committed to the clear finish now, but I do love that green one too. Next time, that's the way I'm going. There will be a next time

A good idea for the next one you do is to buy some ash veneer sheets,  I think I got 20 8x6" sheets for under £5. Great to test colour/finish ideas on.

Yep; veneer is a great choice - I used a sheet I got from Damian on my APII U-60 which had been snapped in two through the body and had all kinds of fun with green spirirt based stain and many, many coats of clear!!

http://forum.westoneguitars.net/t2458-and-so-it-begins

Don't get wrong; there's nothing wrong with a natural finish and the Thunders generally were interesting to look at so yeah; it's a safe choice but one in keeping with the guitar.

I see what you mean Corsair about the custom paint. That's an amazing job from something most people would not attempt. I'm loving green guitars. I also ordered a les Paul brass nut today for €9 ready slotted, so thanks to Sgt Vimes for the advice.  Should have it Thursday.

Here's the file that I bought and used on those frets. Great tool and polishing kit.

And here's the neck, sanded to 320 grit, grain filled and coated with the first coats of wipe on poly. I was doing two or three coats, then sanding back with 400 grit wet and dry and soapy water. She's really smooth and looking good. I need to get a logo sorted now if anyone can help. Mine needs just the word Westone. Let me know your thoughts, I'm loving this restoration.

Looks really nice!
I don't think I could use that file, I like to be able to see the fret as it's being filed, just so I know I'm going true, did you have any issues with it?

The body got the same treatment as the neck and I found that when sanding the curves, it's a lot easier to tape your sandpaper around a 9inch paint roller ( without handle!) after grain filling and sanding I decided to leave the stripe natural and due the wings with colon oak dye. I finished the final grain fill with some mahogany stain as it was thick, the right colour and was there when I need something!

Sgt. Vimes wrote:Looks really nice!
I don't think I could use that file, I like to be able to see the fret as it's being filed, just so I know I'm going true, did you have any issues with it?

Thanks! Having never used a file to dress frets before I found this a dream to use. It fitted the hand perfect and with my finger aligned on the top it kept it true. To be sure I used two fingers on the side of the fret as a guide. What I really liked about it though was no chatter while filing just nice cutting and it was only taking a small amount off so with constant checking and marking with the sharpie they all came out good.

If you don't mind me asking, where did you find the wipe on poly?

Sgt. Vimes wrote:If you don't mind me asking, where did you find the wipe on poly?

Do I mind? It's my pleasure to give something back. I made the wipe on poly using clear gloss varnish mixed with white spirit to a 50/50 ratio. I just made half a jam jar full at a time so it didn't evaporate and change viscosity. I just wet the rag and squeezed out the excess so it wasn't dripping, and wiped on with circular motion, and then applied three coats and sanded back with wet and dry. You can't go wrong. It's a tough finish too

In your last pic, is thatjust stain or poly too?

No that's just the stain.

Ok, I was just wondering why you still had the masking tape on ignore me

Haha, it would have been a disaster if I coated over the tape! That would be a custom job too far!!

I was just rereading this resto and realised you asked for a decal,  I can send you one of mine

Sgt. Vimes wrote:I was just rereading this resto and realised you asked for a decal,  I can send you one of mine

that would be brilliant, thanks. That's all she needs to finish the hardware. Just getting around to wiring her up now. She's looking good. I'll post some pics when she's bolted together

Cool,  I look forward to it.
Pm me your address and I'll send one out when I get a chance.

Sorry, completely forgot about the decal,  I'll try and sort it this week!
