Westone Concord III Empty Westone Concord III

Post by hendrik Mon Nov 03, 2008 1:35 am

I found a metallic blue CONCORD III and bought it for just 50€,
guitar sounds amazing.
But the Middle Pickup isn't working at all.
So can someone provide me with a wiring diagram, it seems one capacitor is missing (melted away ?)

Thanks in advance
hendrik
hendrik
Senior Member

Number of posts : 195
Age : 56
Location : Switzerland
Registration date : 2008-11-03

Back to top Go down

Westone Concord III Empty Re: Westone Concord III

Post by corsair Mon Nov 03, 2008 1:42 am

Which version?

http://www.westone.info/concord3.html
avatar
corsair
Senior Member

Number of posts : 6279
Age : 63
Location : Mount Hunter, NSW, Australia
Registration date : 2008-04-08

Back to top Go down

Westone Concord III Empty Concord III

Post by hendrik Mon Nov 03, 2008 5:24 am

Must be an 1982 or 1983 model, Tremolo is fixed.

Version1


Last edited by hendrik on Mon Nov 03, 2008 5:28 am; edited 1 time in total (Reason for editing : small change)
hendrik
hendrik
Senior Member

Number of posts : 195
Age : 56
Location : Switzerland
Registration date : 2008-11-03

Back to top Go down

Westone Concord III Empty Re: Westone Concord III

Post by melon175 Fri Feb 20, 2009 10:11 pm

Are you still looking for a wiring diagram? I've just opened up my Concord II to sort out an earthing problem and drew up a wiring diagram while it was out. the hardware might be different but its the same setup.
avatar
melon175
Registered Member

Number of posts : 5
Location : Hampshire
Registration date : 2009-02-19

Back to top Go down

Westone Concord III Empty Wiring diagram

Post by hendrik Sat Mar 28, 2009 7:56 am

Hi,

yes indeed, I'm still looking for the wiring diagram.
Because one pickup was broken, so it seems the pre-owner did some changes.
In the end I stuck to the original Fender wiring (Stratocaster).
hendrik
hendrik
Senior Member

Number of posts : 195
Age : 56
Location : Switzerland
Registration date : 2008-11-03

Back to top Go down

Westone Concord III Empty Re: Westone Concord III

Post by Steve777 Sat Mar 28, 2009 9:02 am

Hi Guys,

Just a thought .... I recently sketched out my Genesis II wiring into Powerpoint and then converted this to a Jpeg. I then sent it to David who put it on the Westone web site for all to share. The more wiring diagrams the better!

All the best

Steve
Steve777
Steve777
Senior Member

Number of posts : 356
Age : 65
Location : Coventry, UK
Registration date : 2008-10-14

Back to top Go down

Westone Concord III Empty Re: Westone Concord III

Post by melon175 Fri May 15, 2009 11:33 am

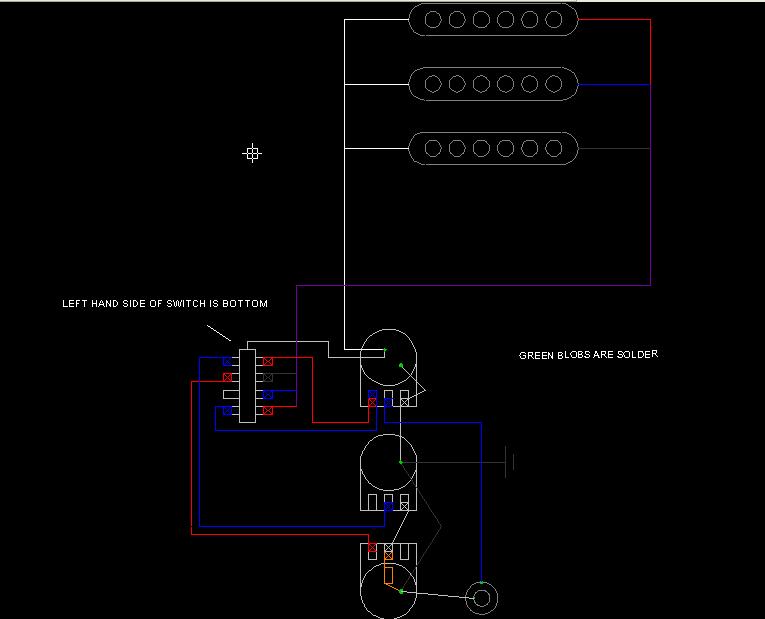

Finally got round to computering up my sketch, I've also sent it to westone.info. Good luck.

Westone Concord III Concor12

https://i.servimg.com/u/f89/13/89/47/05/concor12.jpg
avatar
melon175
Registered Member

Number of posts : 5
Location : Hampshire
Registration date : 2009-02-19

Back to top Go down

Westone Concord III Empty Re: Westone Concord III

Post by anaerobe Fri May 15, 2009 12:39 pm

Good stuff.

This should be moved to the wiring section of westone.info!
anaerobe
anaerobe
Senior Member

Number of posts : 497
Age : 61
Location : ,location, location.
Registration date : 2009-05-05

Back to top Go down

Westone Concord III Empty Re: Westone Concord III

Post by melon175 Mon May 18, 2009 12:48 pm

I've emailed it to him so it should hopefully be up when he gets the chance.
avatar
melon175
Registered Member

Number of posts : 5
Location : Hampshire
Registration date : 2009-02-19

Back to top Go down

Westone Concord III Empty Brillant drawing

Post by hendrik Fri May 29, 2009 2:08 pm

Hi,

well done. And Thanks by the way.

H.
hendrik
hendrik
Senior Member

Number of posts : 195
Age : 56
Location : Switzerland
Registration date : 2008-11-03
