The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Go down

The Rail Bass (1985, white body color, black hardware) Tension knob replacement Empty The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Post by cfw1872 on Mon Jan 27, 2020 2:30 pm

The Tension knob that allows you to move the pickup module back and forth along the steel rails is no longer providing enough tension to be able to lock the module in place. The thread on the knob still looks sharp, but something else has clearly crumbled away inside and has clogged up the threads. Does anyone know how to fix this or where I can buy a replacement tension knob?

Also there doesn't seem to be access to the knob area inside the moveable module (except for the small whole allowing the threaded pole to come thru)once you pull the pickup out, so i am assuming the whole tension knob unit is replaced thru the top "screw port".

Any advice is appreciated!

Thanks!
Chris
cfw1872
cfw1872
Registered Member

Number of posts : 3
Registration date : 2020-01-27

Back to top Go down

The Rail Bass (1985, white body color, black hardware) Tension knob replacement Empty Re: The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Post by Westbone on Tue Jan 28, 2020 7:16 am

Remove the strings

Remove the 4 screws on the back of the bridge section. The one's going into the rails.

Slide off, then slide off the pickup.

All will be revealed.
Westbone
Westbone
Financial supporter

Number of posts : 5777
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

The Rail Bass (1985, white body color, black hardware) Tension knob replacement Empty Re: The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Post by cfw1872 on Tue Jan 28, 2020 3:20 pm

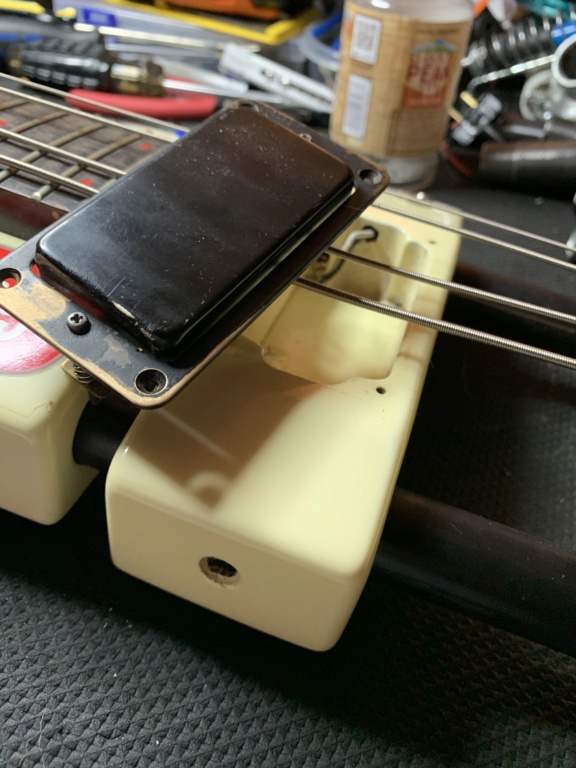

Hey Westbone- thanks! I have removed the pickup- the pocket only has a couple of holes drilled for wires. The pocket sits below the top rail and the tension knob is above the top rail, so no access to it from the pickup pocket or from the back either. It appears that the only access point is thru the hole that the knob sits in.

Either way, I need to source the tension knob assembly. The only part that hasn't crumbled to bits is the actual knob itself and the threaded rod extending from the knob. I assume there is a threaded receptacle and/or spring that sits in the "knob hole", but once again, everything inside has disintegrated into bits.
The Rail Bass (1985, white body color, black hardware) Tension knob replacement 60179111
cfw1872
cfw1872
Registered Member

Number of posts : 3
Registration date : 2020-01-27

Back to top Go down

The Rail Bass (1985, white body color, black hardware) Tension knob replacement Empty Re: The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Post by Westbone on Tue Jan 28, 2020 4:47 pm

Put a new insert in.
Westbone
Westbone
Financial supporter

Number of posts : 5777
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

The Rail Bass (1985, white body color, black hardware) Tension knob replacement Empty Re: The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Post by cfw1872 on Tue Jan 28, 2020 5:51 pm

What am I inserting and where can I get it?
cfw1872
cfw1872
Registered Member

Number of posts : 3
Registration date : 2020-01-27

Back to top Go down

The Rail Bass (1985, white body color, black hardware) Tension knob replacement Empty Re: The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Post by corsair on Tue Jan 28, 2020 11:31 pm

Epoxying a nut into the housing?

_________________
".... and on the eighth day, God created New Zealanders.

Because even the Australians need heroes"
corsair
corsair
Administrator

Number of posts : 6228
Age : 61
Location : Mount Hunter, NSW, Australia
Registration date : 2008-04-08

Back to top Go down

The Rail Bass (1985, white body color, black hardware) Tension knob replacement Empty Re: The Rail Bass (1985, white body color, black hardware) Tension knob replacement

Post by Purge on Sun Mar 01, 2020 10:28 am

http://www.modelfixings.co.uk/threaded_inserts.htm
cant remember which oone but pretty sure it has an internal 4mm thread
Purge
Purge
Westone Nut

Number of posts : 44
Age : 59
Location : NE England
Registration date : 2019-06-19
