BASS - Need help with this Bass Empty Need help with this Bass

Post by Peden Tue Aug 04, 2020 7:13 am

Hello peeps

First post, I have this Westone Thunder 1A bass, I don’t know much about it but the wiring is messed up and the switch is missing ,would anyone know where I can get parts for this, going to try and revive it and see what happens.

Any help on this would be greatly appreciated.
Cheers

Penden
Peden
Peden
Registered Member

Number of posts : 5
Registration date : 2020-08-04

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Peden Tue Aug 04, 2020 7:15 am

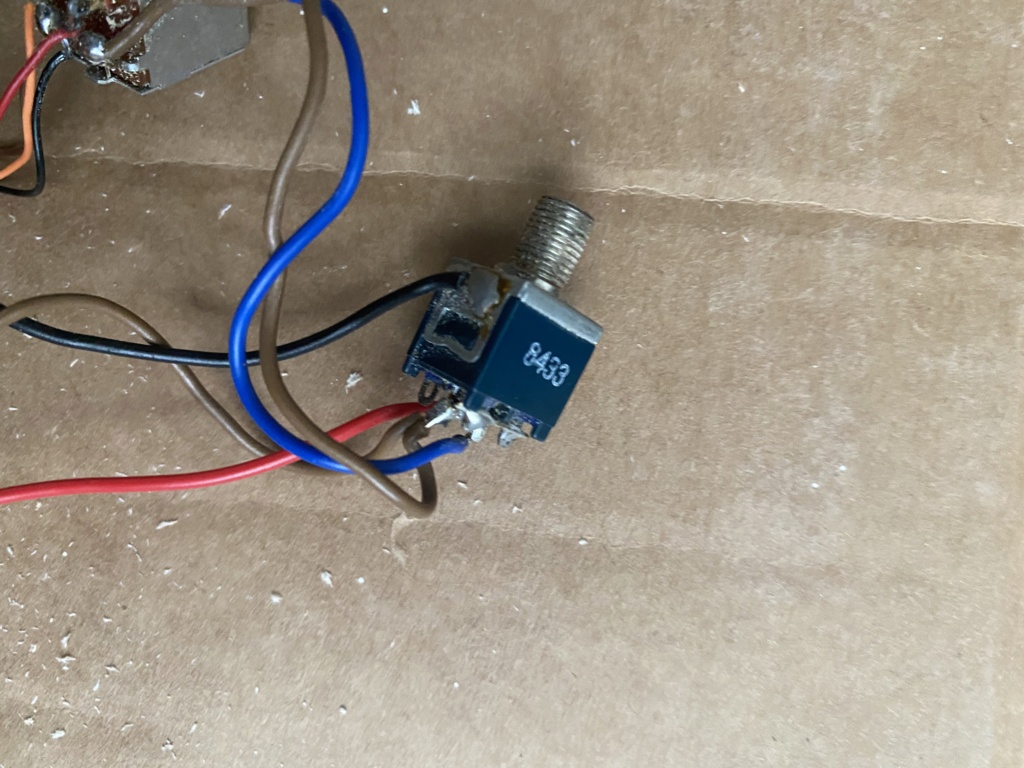

BASS - Need help with this Bass 0a942910BASS - Need help with this Bass Img_0810

Would anyone know what switch I need for this, also I haven't seen many Westone Thunder 1A basses with the one pickup, sorry for my ignorance here, I picked this Bass up of a friend for £30, he said it wasn't working and it needed new electronics but I don't know where to start, would like to get it working, strange setup with a wire under the Bridge ?

Cheers and sorry for the edit of the posts, new here .

Cheers

Peden


Last edited by Peden on Tue Aug 04, 2020 8:00 am; edited 2 times in total (Reason for editing : too many pics)
Peden
Peden
Registered Member

Number of posts : 5
Registration date : 2020-08-04

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Westbone Tue Aug 04, 2020 8:14 am

Can help you with the switch as per your photo. You in the UK?

All electric guitars have a connection to the bridge. It's an earth/common. Otherwise you'd have a massive hum.

Put a few photos up of all the electrics.
Westbone
Westbone
Financial supporter

Number of posts : 5849
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Peden Tue Aug 04, 2020 9:53 am

Hi Westbone

Thank for this, Yeah I live in Swansea at the moment, it has some damage to the paint job , so I have stripped it, the poly coating was a nightmare though.

BASS - Need help with this Bass Img_0813
BASS - Need help with this Bass Img_0814
Peden
Peden
Registered Member

Number of posts : 5
Registration date : 2020-08-04

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Westbone Tue Aug 04, 2020 10:03 am

The broken switch is the active on/off.

I have these.

Send me a pm.

Looking at the active circuit board. Make sure none of the components are bent onto each other and shorting out. Yours does look a little battered.
Westbone
Westbone
Financial supporter

Number of posts : 5849
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Peden Tue Aug 04, 2020 10:45 am

Yeah, Bloody mess indeed, The Pickup looks like it had some sort of compound on the bottom of the magnets that stuck to the brass plate also, I think I have some of this stuff that I used on computers would that be okay to use here ? the input jack is a bit dodgy too, would like to have brass knobs instead of the plastic ones and a new bridge and tuners to make it look nice, is there anywhere I can pick these items up online, I suppose I am trying to customise the whole thing.
Peden
Peden
Registered Member

Number of posts : 5
Registration date : 2020-08-04

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Westbone Tue Aug 04, 2020 11:02 am

That compound on the bottom of the pickup is perished foam rubber.

Used to push the pickup either up or squash in down with the adjusting screws at each end.

A bit of spit and polish on the bridge and tuners works wonders.

Those black knobs you have are standard items on your model.

do you have a serial number?
Westbone
Westbone
Financial supporter

Number of posts : 5849
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Peden Tue Aug 04, 2020 12:47 pm

So do I put some foam between the plate and the pickup when putting back on, it looks like a compound to me on closer inspection, the serial on the neck is 6050247
Peden
Peden
Registered Member

Number of posts : 5
Registration date : 2020-08-04

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Westbone Tue Aug 04, 2020 5:12 pm

Well the brass base needs a bit glue to secure it to the pickup bottom.

Underneath some foam cushioning.
Westbone
Westbone
Financial supporter

Number of posts : 5849
Location : Redbridge
Registration date : 2008-12-28

http://www.chruler.com/

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by corsair Tue Aug 04, 2020 5:23 pm

Foam goes underneath the pickup, in the cavity, to provide some resistance to the adjustment screws.

Really, doesn't look too bad in there...

Got a finish in mind??

_________________
".... and on the eighth day, God created New Zealanders.

Because even the Australians need heroes"
corsair
corsair
Senior Member

Number of posts : 6259
Age : 62
Location : Mount Hunter, NSW, Australia
Registration date : 2008-04-08

Back to top Go down

BASS - Need help with this Bass Empty Re: Need help with this Bass

Post by Barry Tue Aug 04, 2020 10:18 pm

Looks good.

If you decide to change the knobs (first of all, don't!) make sure you keep them. They're a proprietary design and highly sought after, and near impossible to find.
