Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
Hello, My Girlfriend got me a 1984 Electra Phoenix X110 VW.
It was to replace one like I once owned.
I swapped out the off wall generic Pickup someone stuck in it
with a Aria Pro Model MMK 45 Gold Post Humbucker and it's
a 4 Conductor Red White Green Ground Wire model.
Of course this is the Single Humbucker Model Phoenix Single Tone / Vol
with a DPDT. The DPDT switch was busted so I've replaced it with a
All Parts Gold Post/Shaft on to match the Black / Gold Hardware.
I've looked for days to find a Wiring Schematic for proper wiring
the 4 conductor MMK 45 and can't find one anywhere on the web
showing which wires goes to which post I know one of the
middle lugs / post goes to the vol input after
that I'm lost. I also do know the Bare is Ground.
Can anyone please help me with proper connecting the 3 Wires
to the dpdt switch.
It was to replace one like I once owned.
I swapped out the off wall generic Pickup someone stuck in it
with a Aria Pro Model MMK 45 Gold Post Humbucker and it's
a 4 Conductor Red White Green Ground Wire model.
Of course this is the Single Humbucker Model Phoenix Single Tone / Vol
with a DPDT. The DPDT switch was busted so I've replaced it with a
All Parts Gold Post/Shaft on to match the Black / Gold Hardware.
I've looked for days to find a Wiring Schematic for proper wiring
the 4 conductor MMK 45 and can't find one anywhere on the web
showing which wires goes to which post I know one of the
middle lugs / post goes to the vol input after
that I'm lost. I also do know the Bare is Ground.
Can anyone please help me with proper connecting the 3 Wires
to the dpdt switch.
Last edited by Electra 110VW Owner on Sat Aug 26, 2017 4:14 pm; edited 1 time in total (Reason for editing : correcting my post description.)
Guest- Guest
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
White is hot
Red for coil tap
Disregard the green it's for phase reversal with a two pickup guitar.
And ground is your bare wire.
Red for coil tap
Disregard the green it's for phase reversal with a two pickup guitar.
And ground is your bare wire.
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
i believe you will need to connect the green wire to ground as well. the coils must have a grounded connection too.
at the pickup, the bare wire is connected only to the baseplate, which allows for shielding even when using a reverse-phase output setting
on a 2 pup guitar, the phase reverse switch would swap the connections of the green and white wires to ground or output while leaving the shield connection unchanged
at the pickup, the bare wire is connected only to the baseplate, which allows for shielding even when using a reverse-phase output setting
on a 2 pup guitar, the phase reverse switch would swap the connections of the green and white wires to ground or output while leaving the shield connection unchanged
gittarasaurus- Financial supporter
- Number of posts : 1523
Location : San Francisco, CA
Registration date : 2011-05-25
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
gittarasaurus is correct the green will need to be connected to ground.
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
I have her all wired with the Aria II MMK 45 with Gold post and here is what I did in addition to using Seymour Duncan / Bourns Smooth 500k Pots and a Vintage Style Emerson Oil and Paper .047uf Cap and a Gold Switch Craft Jack, All Parts On / On / On Gold DPDT shes got tons of Tone.
Guest- Guest
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
Ok few other Minor changes I went with the Notched Vintage Gibson Knobs, Black Tip 6mm Floyd Arm an Black Chromer Metal Humbucker Mounting Ring using Gold Screws, Gold Tuner Screws on Neck Rod Cover yet Stock/Classic/Updated look with the Gold Post MMK45 Aria Pro II Humbucker...
Guest- Guest
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
The String Alignment is so close to perfect with the Pickup Post. That 4 Conductor MMK45 with the Emerson .047 Red Oil and Paper Cap better Pots , Jack and Switch makes this a more versatile sleeper that can go from Jazz, Blues, Country to Metal Shredder.
The tone characters range is so amazing what the hard part was using my Left hand to do the Mods since I'm right handed and had a massive stroke on Feb 1st.
However it was therapeutic as well to try to get my right hand working again hopefully shredding again soon. Looking at her like the first one I bought in 84 as my first Electric Guitar I've fell back in love with this Model Guitar, Slick, Sexy, and built with high quality standards.
Hope I can find the Dual Humbucker 125 I think it was in same color now. OBTW she's getting Dunlop Stainless 6150 Frets Soon and Graphite Nut.
The tone characters range is so amazing what the hard part was using my Left hand to do the Mods since I'm right handed and had a massive stroke on Feb 1st.
However it was therapeutic as well to try to get my right hand working again hopefully shredding again soon. Looking at her like the first one I bought in 84 as my first Electric Guitar I've fell back in love with this Model Guitar, Slick, Sexy, and built with high quality standards.
Hope I can find the Dual Humbucker 125 I think it was in same color now. OBTW she's getting Dunlop Stainless 6150 Frets Soon and Graphite Nut.
Guest- Guest
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
Beautiful job, really nice.
I'm a big fan of both single pup guitars and the Spectrum/Electra lineup. When you put them both together, it's gotta be magic time!
I'm a big fan of both single pup guitars and the Spectrum/Electra lineup. When you put them both together, it's gotta be magic time!
_________________
"A little song. A little dance. A little seltzer down your pants." -Chuckles the Clown
GUITARS : https://legend.barryeames.com
MUSIC/PIX/VIDEOS: https://getback.barryeames.com (including Spectrum ST)

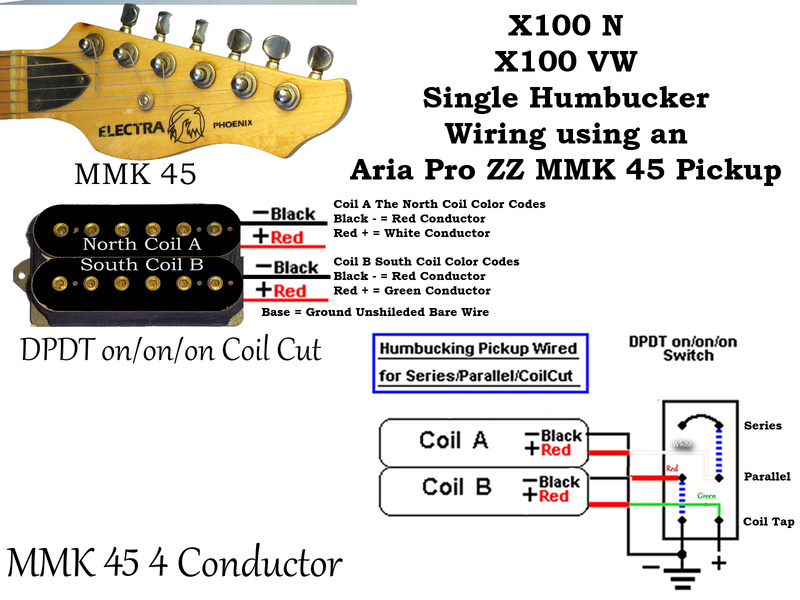

The Wiring and updated componets usedin the X110 VW
This is about $40.00 in Parts including Shipping, The Pros of this the Stock appearance stays with just a Touch of Trim Color update matching.
Sound Wise you go beyond a mere Coil Tap/ Coil Cut to adding a Series / Parallel Output from the Single Humbucker.
The Sound / Tone is improved with a Fender Strat Vintage,Gibson PAF Vintage / Seymour Duncan JB style Humbucking Tone Range out of a Single Aria Pro ZZ Gold Post MMK45 Pickup. Basically sounding lik Three different Guitars.
That Oil Cap is so much more Tone Warming, the Pots are smoother responding for quick changes.
Sound Wise you go beyond a mere Coil Tap/ Coil Cut to adding a Series / Parallel Output from the Single Humbucker.
The Sound / Tone is improved with a Fender Strat Vintage,Gibson PAF Vintage / Seymour Duncan JB style Humbucking Tone Range out of a Single Aria Pro ZZ Gold Post MMK45 Pickup. Basically sounding lik Three different Guitars.
That Oil Cap is so much more Tone Warming, the Pots are smoother responding for quick changes.
Electra 110VW Owner wrote:The String Alignment is so close to perfect with the Pickup Post. That 4 Conductor MMK45 with the Emerson .047 Red Oil and Paper Cap better Pots , Jack and Switch makes this a more versatile sleeper that can go from Jazz, Blues, Country to Metal Shredder.
The tone characters range is so amazing what the hard part was using my Left hand to do the Mods since I'm right handed and had a massive stroke on Feb 1st.
However it was therapeutic as well to try to get my right hand working again hopefully shredding again soon. Looking at her like the first one I bought in 84 as my first Electric Guitar I've fell back in love with this Model Guitar, Slick, Sexy, and built with high quality standards.
Hope I can find the Dual Humbucker 125 I think it was in same color now. OBTW she's getting Dunlop Stainless 6150 Frets Soon and Graphite Nut.
Guest- Guest
Re: Help Wiring a 84 Electra Phoneix X110VW with a MMK45 4 Conductor Pickup
Number 2 X110NA Being updated like the Vintage X 110VW How Ever this one is Getting Upgraded with 2 - Modern Vintage Guitar CTS 450GT A500K Pots Low Torque 10%[size=13][size=16]. Sprague Vitamin Q .047uf Vintage Oil & Paper Cap. The 4 Conductor MMK45 as is the 3 Way On / On / On DPDT Chrome DPDt to get Coil Tap, Parallel, and Series Tones and new Switch Craqft 1/4" Jacks.
The MMK45 now Rest in a Black Chrome Humbucker Ring with new Chrome Screws, Chrome Gibson Knob Pointers and MMK Post are now Chrome, a Chrome and Black Tip Tremolo Arm Coming, and Control Plate and Trem Cover from Westbone. Just need a Truss Cover and this Baby will Be Rocking.
[/size][/size]
The MMK45 now Rest in a Black Chrome Humbucker Ring with new Chrome Screws, Chrome Gibson Knob Pointers and MMK Post are now Chrome, a Chrome and Black Tip Tremolo Arm Coming, and Control Plate and Trem Cover from Westbone. Just need a Truss Cover and this Baby will Be Rocking.
[/size][/size]
Last edited by Electra 110VW Owner on Thu Oct 12, 2017 7:54 pm; edited 1 time in total (Reason for editing : misstyped)
